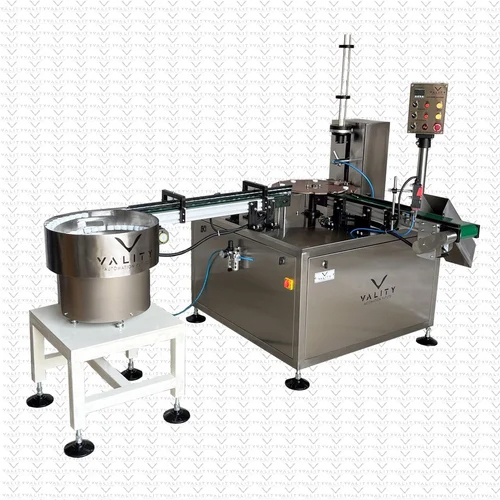

Cap Closing Machine

Product Description

Cap Closing Machine: Technical Description

A cap closing machine is an essential piece of equipment used in various industries, including food and beverage, pharmaceuticals, cosmetics, and household chemicals. Its primary function is to securely seal containers with caps, ensuring product integrity, preventing contamination, and maintaining freshness. These machines are designed for high efficiency and precision, automating the capping process and accommodating a wide range of cap types and container sizes.

1. Machine Components

- Main Frame

  - Constructed from durable stainless steel or high-grade aluminum, providing stability, durability, and compliance with hygiene standards.

- Cap Feeding System

  - Hopper or Bowl Feeder Automatically supplies and orients caps to the capping mechanism, ensuring that they are correctly positioned for application.

  - Adjustable for different cap sizes and styles, including screw-on, snap-on, and flip-top caps.

- Capping Mechanism

  - A specialized mechanism designed to apply torque and securely close caps onto containers.

  - Can utilize various systems such as:

    - Chuck Capping Uses a rotating chuck to grip and twist caps onto containers.

    - Spindle Capping Uses rotating spindles to apply pressure and torque to the caps.

    - Snap Capping For snap-on caps, using pressure to secure them onto the containers.

- Control Panel

  - A user-friendly interface featuring a touchscreen or buttons for easy operation and adjustments.

  - Integrated PLC (Programmable Logic Controller) for monitoring machine functions, speed, and diagnostics.

- Quality Control Systems

  - Sensors to ensure proper alignment and closure of caps, detecting any defects or misalignments.

  - May include vision systems for real-time quality checks to verify correct cap placement and tightness.

- Discharge Conveyor

  - Automatically transports sealed containers to the next stage of the production line, such as labeling or packaging machines.

2. Operational Principles

- Container Loading

  - Containers are automatically fed into the machine, oriented properly for the capping process.

- Cap Feeding

  - Caps are supplied from the feeder, oriented correctly for application.

- Capping Process

  - The capping mechanism applies the cap to the container, using the selected method (chuck, spindle, or snap capping) to ensure a secure closure.

  - The torque and pressure applied can be adjusted to accommodate different cap materials and designs.

- Quality Assurance

  - Integrated sensors and vision systems detect any defects, such as misaligned or improperly tightened caps, automatically rejecting faulty containers.

- Container Discharge

  - Finished containers with securely closed caps are conveyed to the next stage in the production line.

3. Technical Specifications

- Production Speed

  - Capable of processing 100 to 300 containers per minute, depending on the machine configuration and container size.

- Container Size Compatibility

  - Adjustable for a range of container sizes, typically from 50ml to 5L.

- Cap Size Compatibility

  - Can handle various cap sizes, typically from 20mm to 120mm in diameter.

- Power Supply

  - Operates on single-phase or three-phase power, generally requiring between 1 kW to 5 kW.

- Air Supply

  - May require compressed air (typically 4-6 bar) for pneumatic components, such as actuators and sensors.

- Dimensions

  - Compact design, with dimensions varying based on specific configurations, typically around 1.5m x 1.2m x 1.5m (length x width x height).

4. Key Features

- High Efficiency

  - Automation allows for high-speed operation, increasing output compared to manual or semi-automated methods.

- Versatility

  - Capable of handling a wide variety of cap sizes and types, making it adaptable to different product lines.

- User-Friendly Operation

  - Intuitive controls and easy adjustments enhance operator efficiency and reduce training time.

- Robust Construction

  - Built for durability and easy maintenance, with materials that comply with hygiene standards.

- Minimal Downtime

  - Quick-change tooling and accessible design help minimize downtime during production shifts.

5. Applications

- Food & Beverage Closing caps for bottled beverages, sauces, and other food products to ensure freshness and prevent contamination.

- Pharmaceuticals Securing caps on medicine bottles to enhance safety and comply with regulatory standards.

- Cosmetics Closing caps for lotions, creams, and fragrances to protect product integrity.

- Household Chemicals Securing caps on cleaning products and other chemicals to ensure safe handling and prevent leakage.

Conclusion

The cap closing machine is an essential component of modern packaging operations, providing high efficiency, reliability, and quality in the capping process. By automating this critical operation, manufacturers can ensure that their products are securely sealed, maintaining product integrity and safety. With its versatility and ease of operation, this machine significantly enhances production capabilities and supports compliance with industry standards.
