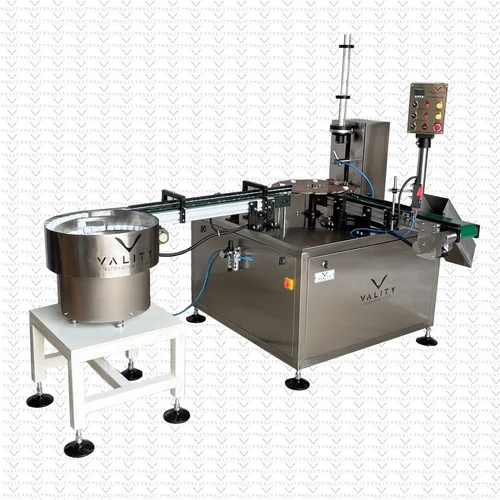

Automatic Bottle Caps Lining Machine

Product Description

Automatic Bottle Cap Lining Machine: Technical Description

An automatic bottle cap lining machine is a specialized piece of equipment designed to insert liners or wads into bottle caps efficiently and accurately. This machine plays a crucial role in various industries, including food and beverage, pharmaceuticals, cosmetics, and household chemicals, where secure seals are vital for product integrity and consumer safety. The automation of this process enhances production speed, consistency, and quality control.

1. Machine Components

- Main Frame

  - Constructed from stainless steel or high-quality aluminum to ensure durability, stability, and hygiene.

- Cap Feeding System

  - Hopper or Bowl Feeder Automatically supplies and orients caps to the insertion mechanism, allowing for continuous operation.

  - Designed to accommodate a wide range of cap sizes and styles, including screw-on and snap-on caps.

- Liner Supply System

  - Pre-Cut Liners For machines that use ready-made liners.

  - Continuous Roll Feeding System For machines that cut liners from a roll, equipped with a cutting mechanism to punch out liners on demand.

- Insertion Mechanism

  - Equipped with one or more insertion heads (single or multi-head configuration) that pick up and insert liners into the caps.

  - Each head can utilize suction cups or mechanical grippers for reliable liner handling.

- Control Panel

  - A user-friendly interface featuring a touchscreen for easy operation and adjustments.

  - Integrated PLC (Programmable Logic Controller) for monitoring machine functions, speed, and diagnostics.

- Quality Control Systems

  - Optical or mechanical sensors to ensure proper alignment and insertion of liners.

  - May include vision systems for real-time quality checks, ensuring liners are correctly placed.

- Discharge Conveyor

  - Automatically transports lined caps to subsequent processing stages, such as capping or labeling machines.

2. Operational Principles

- Cap Loading

  - Caps are automatically fed from the feeder into the machine, oriented properly for the lining process.

- Liner Cutting (if applicable)

  - For machines using continuous rolls, liners are cut to the required size before insertion.

- Liner Insertion

  - The insertion mechanism picks up liners and places them into the caps, either one at a time or simultaneously, depending on the configuration.

  - The insertion process is quick and precise to ensure a proper seal.

- Quality Assurance

  - Integrated sensors detect any misalignments or defects, rejecting caps that do not meet quality standards.

- Cap Discharge

  - Finished caps with inserted liners are transported to the next stage in the production line.

3. Technical Specifications

- Production Speed

  - Capable of processing 100 to 300 caps per minute, depending on the machine configuration and the cap size.

- Cap Size Compatibility

  - Adjustable to handle various cap sizes, typically from 20mm to 120mm in diameter.

- Liner Material Compatibility

  - Suitable for different liner materials such as foam, paper, aluminum, and plastic, based on the sealing requirements.

- Power Supply

  - Operates on single-phase or three-phase power, generally requiring 1.5 kW to 5 kW.

- Air Supply

  - May require compressed air (typically 4-6 bar) for pneumatic components, such as suction cups.

- Dimensions

  - Compact design, with dimensions varying based on the number of heads and overall configuration, typically around 1.5m x 1.2m x 1.5m (length x width x height).

4. Key Features

- High Efficiency

  - Automation and multi-head systems allow for high-speed operation, increasing output compared to manual or semi-automated methods.

- Versatility

  - The machine can handle a wide variety of cap sizes and types, making it adaptable to different production lines.

- User-Friendly Operation

  - Intuitive controls and easy adjustments enhance operator efficiency and reduce training time.

- Robust Construction

  - Built for durability and easy maintenance, with materials that comply with hygiene standards.

- Minimal Downtime

  - Quick-change tooling and accessible design help minimize downtime during production shifts.

5. Applications

- Food & Beverage Inserting liners in caps for beverages, sauces, and other liquid products to ensure freshness and prevent contamination.

- Pharmaceuticals Inserting tamper-evident wads in medicine bottles to enhance safety and regulatory compliance.

- Cosmetics Sealing caps for lotions, creams, and fragrances to protect product quality.

- Household Chemicals Lining caps for cleaning products and other chemicals to prevent leakage and ensure safety during transport.

Conclusion

The automatic bottle cap lining machine is an essential component of modern packaging lines, providing high efficiency, reliability, and quality in the lining process. By automating this crucial operation, manufacturers can ensure that their products are securely sealed, thereby maintaining product integrity and safety. Suitable for various industries, this machine significantly enhances production capabilities and supports compliance with industry standards.
